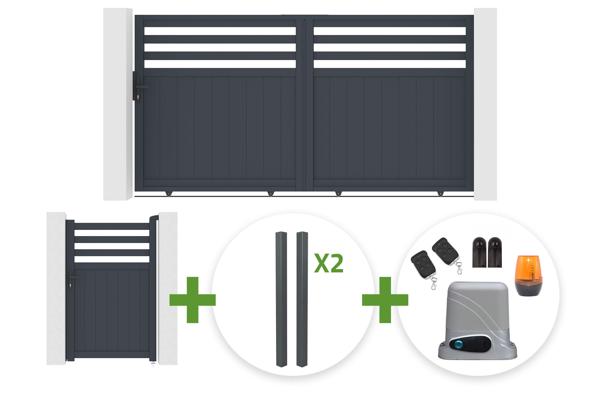

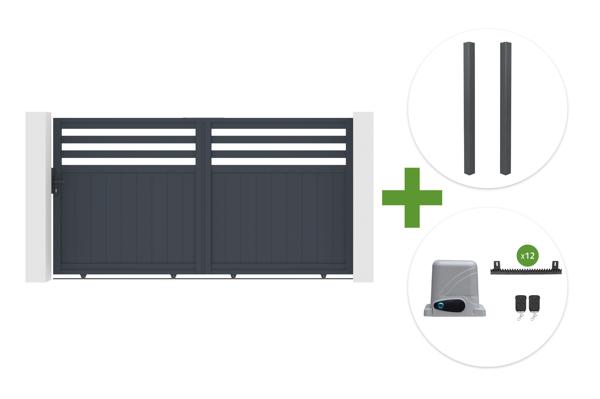

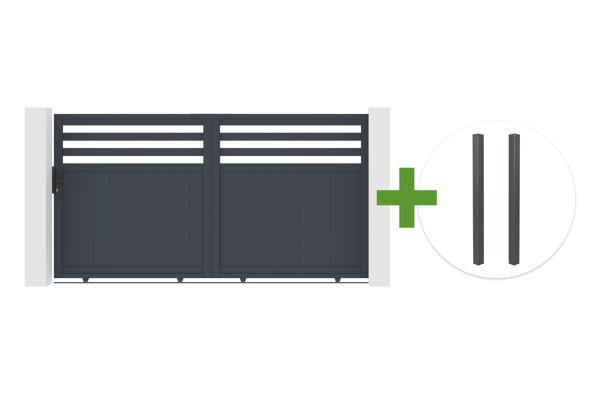

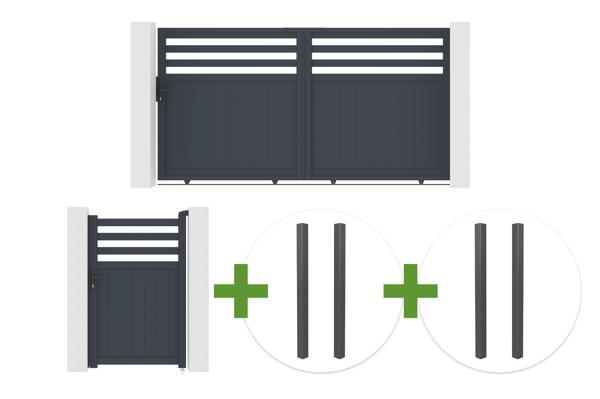

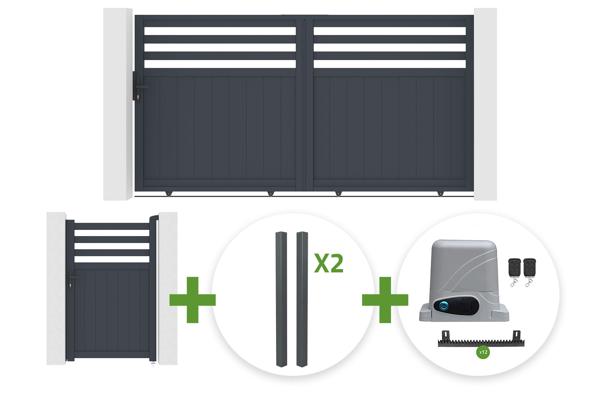

3m NEVIS sliding gate, 160cm high, grey aluminum
8069 kr
-15%Save money! Discover the packs bundled with this product
-5%
between 0 kr and 11174.99 kr*
-7%
between 11175 kr and 22349.99 kr*
-10%
greater than 22350 kr*
*HT orders
Looking for a sliding gate that offers both light and style? Discover the NEVIS range.
The NEVIS semi-openwork sliding gate stands out thanks to its style, which combines modernity and lightness. With its horizontal, openwork slats at the top, it allows for optimal light circulation while preserving privacy at the bottom. Designed to perfectly complement a modern exterior, this aluminum sliding gate combines elegance and practicality for a refined and functional result.
Sliding gate: The ideal solution for small spaces
The sliding gate is the perfect choice for optimizing your entrance space, especially if it is limited. Thanks to its lateral opening, it is ideal for situations where a swing gate would be restrictive. It facilitates vehicle access without requiring any clearance. For even greater convenience, a sliding gate motor allows you to automate its opening, making daily use simpler and smoother.
This sliding gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 300 cm x Height 160 cm
Required width between posts: 305 cm
Minimum post height: 175 cm
Inspired and designed in France
- 4 horizontal bars (140cm long)
- 18 powder-coated slats (15.5cm wide)
- 1 top guide with 4 nylon rollers
- 6m steel guide rail
- 4 steel rollers
- 1 strike plate
- 1 stop
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum is highly resistant to temperature changes, whether hot or cold. It doesn't warp and remains in excellent condition, even after years of use. This robust material is built to last while maintaining its attractive appearance. With aluminum, you're simply choosing a reliable solution suitable for all conditions.
Need Posts?
Our kits are sold without posts, as they are not necessary if you already have suitable pillars or supports for installation.
If you do need them, check out our promotional packs that include the product of your choice and matching posts.
To ensure a safe and stable installation of the sliding gate, the posts must have a minimum height of 175 cm and a width of at least 15 cm.
How to Maintain Your Aluminum Product?
Aluminum requires very little maintenance.
To preserve its shine and durability, clean it once or twice a year with warm soapy water and a soft cloth. Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your sliding gate?
Contact our customer service department using our online form.
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructions
Rod assembly
Self-drilling screws
Compatible motorization type
sliding
Handle colour
Black
Eligibility Extended warranty 5 years
No
Pattern / Design
NEVIS
Operating clearance
26 mm
RAL
7016
Thickness of the blades
1.2 mm
Assembly time
8 h
Recommended number of persons for assembly
2
Compatible engines
Yes
Exists by beating
Yes
Eligibility Extension of warranty 10 years
No
Height
162.8 cm
Type of lock
4 Keys
Required pillar height
175 cm
Required discharge length
3 m
Frame material
Aluminium
Sleeper thickness
2 mm
Wind resistance
60 km/h
Handle material
Aluminium
Opening system
Sliding
Type of filling
half openworked
Finishing
mast
Amounts Section
78*47 mm
Sleeper Section
77*30 mm
Guide system
Upper guide with 4 nylon olives
Opening direction
left to right/right to left
Assembly instructions
Yes
Locking system
Barrel lock
Stud/rail assembly
Self-drilling screws
Warranty
2 an(s)
Supplied accessories
Yes
Stud thickness
1.4 mm
Length of steel rail
6 m
Number of casters
4
Width
303 cm
Width between pillars
303 cm
Colour
Charcoal grey
Main material
Aluminium
Length of the tail of the sliding gate
25.4 cm
All our products are delivered in kit form and to be assembled by you.
We have designed and imagined our products so that they are easy to assemble, and your customer experience is pleasant.
We have provided you with clear assembly instructions that you can download.
All the accessories necessary for the installation of your portal are provided to you, and everything that is included in our portals is specified in the technical characteristics of the product as well as in the description.
You can find all this information on each of our product sheets through these different tabs:
If, upon receipt and assembly of your products, you have any questions about the installation, you can always contact us through the Casanoov contact form.
For orders where all products are advertised as "In stock", we do our best to prepare your order in less than 24 hours.
Delivery times are communicated to you on each of our product sheets.
For orders with products "in reservation", preparation and delivery take place at the time of the effective return to stock.
We offer you in full consciousness a longer delivery time to allow you to receive your entire order in a grouped manner.
You are advised to place two different orders if you wish to receive the products in stock more quickly and place a second order with the products for which we are awaiting stock.
Our delivery costs are free, so this will have no impact on your final cost.
You can contact us via the contact form, section "Question about a product". We will do our utmost to provide you with all the help you need and to answer your questions about our articles.
A Question/Answer system will be set up very quickly on each of our products so that your questions can also help the Casanoov community in their choice!
All our products have a 2-year commercial warranty.
