- This pack contains:
- Grey aluminum sliding gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm

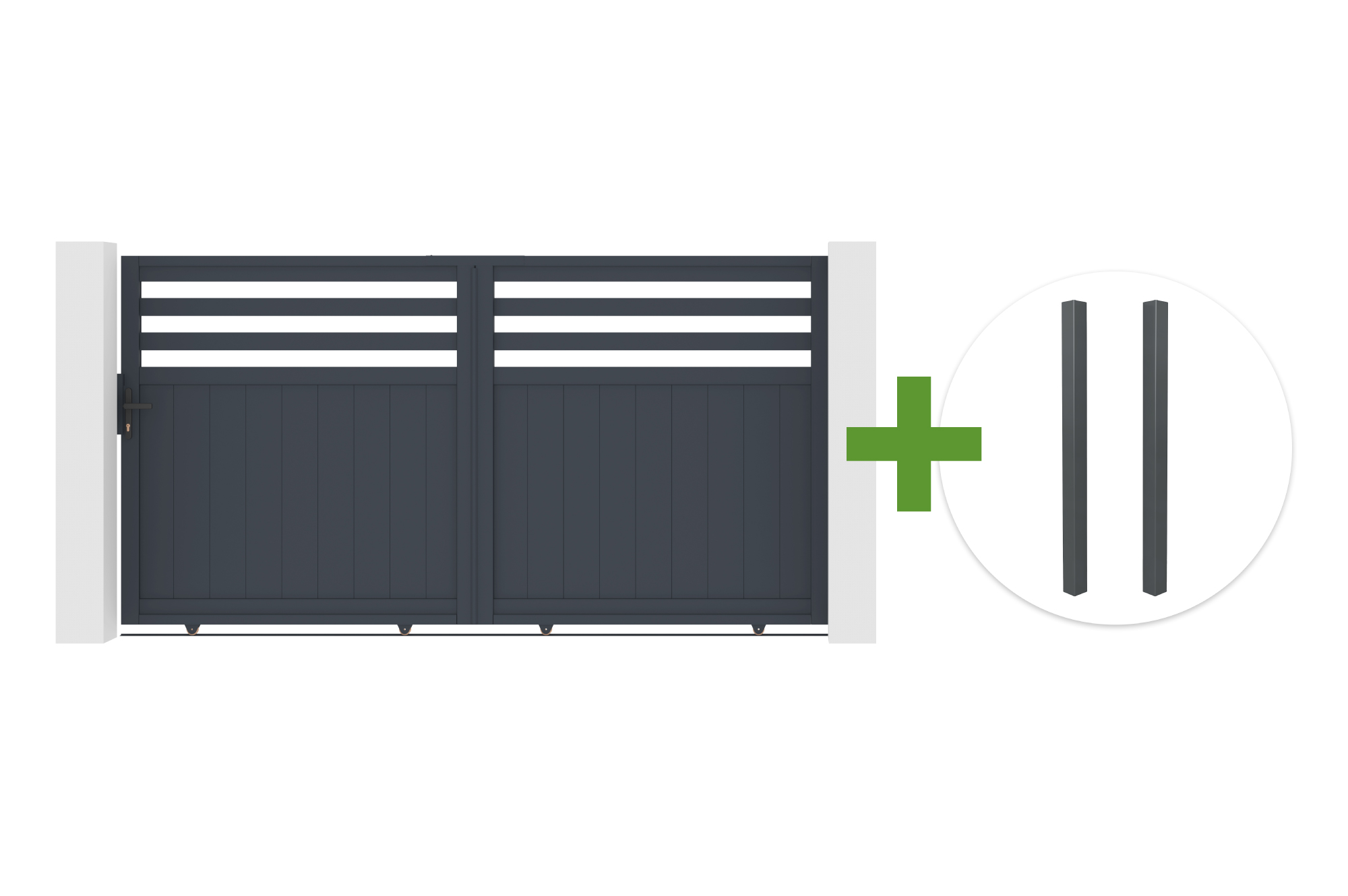

3m NEVIS sliding gate, 160cm high, grey aluminum + 2 ELDA grey aluminum posts, 15x15cm
PAC-004364
13805 krTVA 10% ✓
FREE delivery between 31/08 and 04/09
- This pack contains:
- Grey aluminum sliding gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm
Secure payment
Delivery within 5 days
Free shipping
3m NEVIS sliding gate, 160cm high, grey aluminum + 2 ELDA grey aluminum posts, 15x15cm
13805 kr
-5%
between 0 kr and 11174.99 kr*
-7%
between 11175 kr and 22349.99 kr*
-10%
greater than 22350 kr*
*HT orders
Description
Sliding gate kit 3m NEVIS H.160cm grey aluminium
Need a sliding gate that offers light and style? Discover the NEVIS range.
The NEVIS semi-openwork sliding gate stands out thanks to its style, which combines both modernity and lightness. Thanks to its openwork horizontal slats on the top, it allows optimal light circulation while …
Set of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of …
Sliding gate kit 3m NEVIS H.160cm grey aluminium
Need a sliding gate that offers light and style? Discover the NEVIS range.
The NEVIS semi-openwork sliding gate stands out thanks to its style, which combines both modernity and lightness. Thanks to its openwork horizontal slats on the top, it allows optimal light circulation while preserving privacy at the bottom. Designed to perfectly blend with a modern exterior, this aluminum sliding gate combines elegance and practicality for a result that is both refined and functional.
Sliding Gate: The Ideal Solution for Small Spaces and Sloping Land
A sliding gate is the perfect choice for optimizing the space in your entrance, especially if it is limited. Thanks to its side opening, it is ideal for situations where a swing gate would be restrictive. It facilitates vehicle passage without requiring any backing up, and can be installed on a sloping entrance. If you want even more convenience, a sliding gate motor allows you to automate its opening, for simpler and more fluid daily use.
This sliding gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 300 cm x Height 160 cm
Required width between posts: 305 cm
Minimum post height: 175 cm
Inspired and designed in France
- 4 horizontal bars (Length 140 cm)
- 18 powder-coated slats (Width 15.5 cm)
- 1 upper guide with 4 nylon rollers
- 6 m steel guide rail
- 4 steel rollers
- 1 receiving strike plate
- 1 receiving stop
- 1 cylinder lock
- 1 handle (Black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum withstands temperature changes very well, whether hot or cold. It doesn't warp and remains in excellent condition, even after years of use. This robust material is made to last while maintaining its beautiful appearance. With aluminum, you're simply choosing a reliable solution suitable for all conditions.
Need posts?
Our kits are sold without posts, as they are not essential if you already have pillars or supports suitable for installation.
If you need them, discover our promotional packs that include the product of your choice and its matching posts.
To ensure a safe and stable installation of your sliding gate, the posts must be at least 175 cm high and at least 15 cm wide.
How to maintain your aluminum product?
Aluminum requires very little maintenance. To maintain its shine and durability, clean it once or twice a year with warm, soapy water and a soft cloth.
Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your sliding gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of Qualicoat-certified powder-coated aluminum, they are highly resistant to corrosion and weathering. Their anthracite gray color (RAL 7016), with a matte sandblasted finish, harmonizes with all CASANOOV aluminum gates and pedestrian gates for a modern and refined look.
These posts are designed for installation in concrete (without a base plate), ensuring a robust and durable fixing, even for motorized installations.
They are compatible with all our aluminum gates and pedestrian gates up to 160cm, as well as with all CASANOOV motors, for simple and reliable installation.
- 2 aluminum posts
- 2 aluminum post caps
- Galvanized steel screws included
- Clear assembly instructions
Important: This kit does not include a base or mounting plate. It must be set in the ground with a minimum of 50 cm of concrete to ensure maximum stability.
The finishing cap is easy to install and remove, allowing for the passage of electrical cables for motorization or the addition of accessories (photocells, flashing lights, etc.).
Maintenance: Simply cleaning with soapy water is all that is needed to preserve the shine and color of your post.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Locking system
Barrel lock
-
Stud/rail assembly
Self-drilling screws
-
Rod assembly
Self-drilling screws
-
Compatible motorization type
sliding
-
Handle colour
Black
-
Eligibility Extended warranty 5 years
No
-
Thickness of the blades
1.2 mm
-
Pattern / Design
NEVIS
-
Operating clearance
26 mm
-
RAL
7016
-
Warranty
2 an(s)
-
Assembly time
8 h
-
Supplied accessories
Yes
-
Stud thickness
1.4 mm
-
Recommended number of persons for assembly
2
-
Exists by beating
Yes
-
Compatible engines
Yes
-
Length of steel rail
6 m
-
Number of casters
4
-
Width
303 cm
-
Eligibility Extension of warranty 10 years
No
-
Height
162.8 cm
-
Type of lock
4 Keys
-
Width between pillars
303 cm
-
Required discharge length
3 m
-
Required pillar height
175 cm
-
Frame material
Aluminium
-
Sleeper thickness
2 mm
-
Colour
Charcoal grey
-
Main material
Aluminium
-
Wind resistance
55 km/h
-
Handle material
Aluminium
-
Opening system
Sliding
-
Type of filling
half openworked
-
Length of the tail of the sliding gate
25.4 cm
-
Finishing
mast
-
Amounts Section
78*47 mm
-
Sleeper Section
77*30 mm
-
Guide system
Upper guide with 4 nylon olives
-
Opening direction
left to right/right to left
-
Assembly instructions
Yes
-
RAL
7016
-
Section
15*15 cm
-
Main material
Aluminum
-
Finishing
Powder coating
-
Hat size
15*15 cm
-
Type of installation
To be sealed
-
Width
15 cm
-
Warranty
2 an(s)
-
Screws included
Yes
-
Height
240 cm
-
Colour
Charcoal grey
-
Mounting plate included
No
-
Notice
Yes
-
Thickness
3 mm
-
Installation type
To be sealed
