- This pack contains:
- Grey aluminum swing gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm

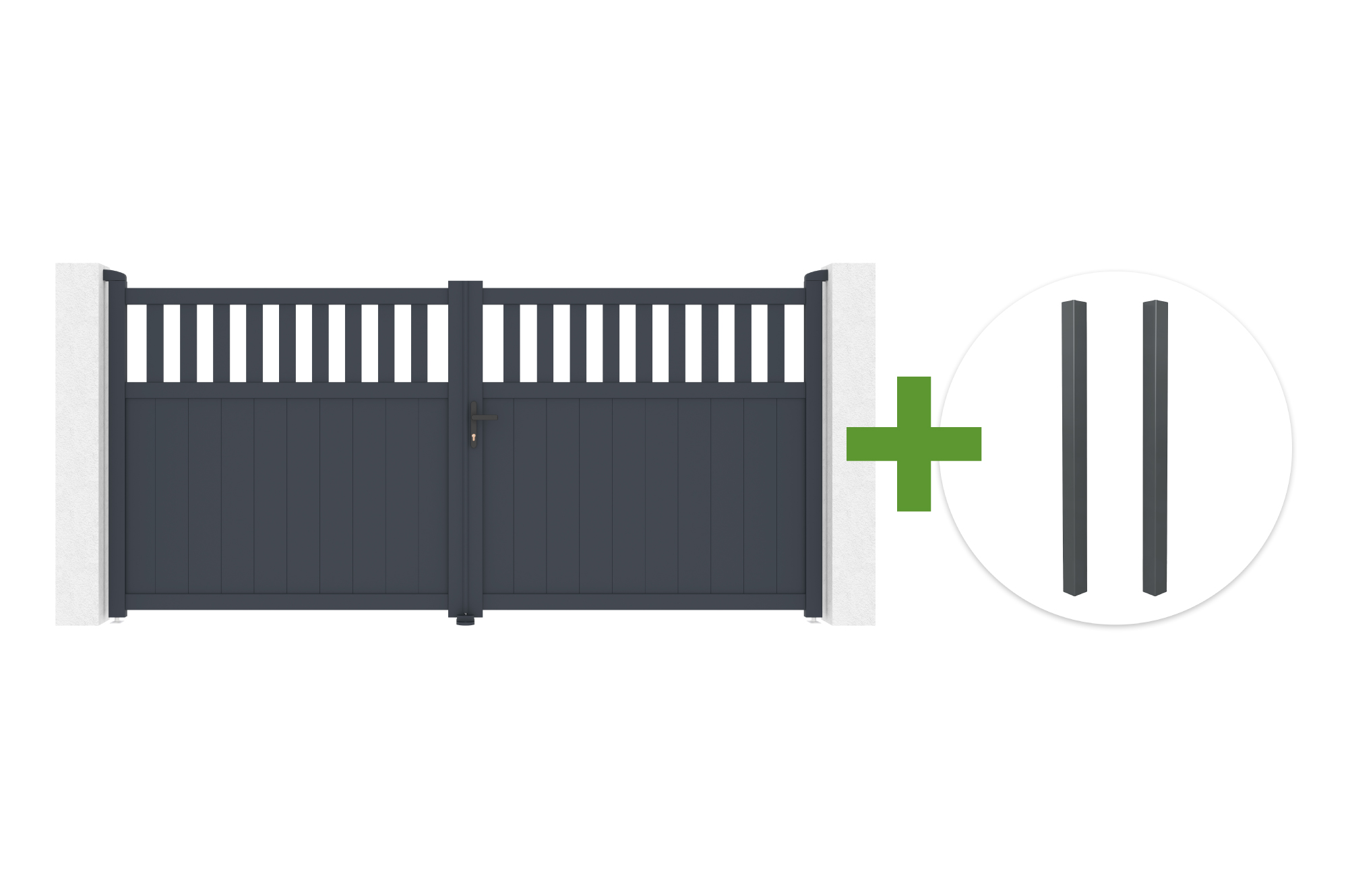

SANTIS 340x160cm grey aluminum swing gate + 2 ELDA grey aluminum posts 15x15cm
PAC-004458
13165 krTVA 10% ✓
- This pack contains:
- Grey aluminum swing gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm
Secure payment
Delivery within 5 days
Free shipping
SANTIS 340x160cm grey aluminum swing gate + 2 ELDA grey aluminum posts 15x15cm
13165 kr
-5%
between 0 kr and 11174.99 kr*
-7%
between 11175 kr and 22349.99 kr*
-10%
greater than 22350 kr*
*HT orders
Description
Swing gate 3,4m SANTIS H.160 grey aluminium
Discover the SANTIS swing gate, ideal for preserving your privacy without sacrificing style.
The SANTIS double-leaf gate combines strength and elegance with its upper bar design that lets light through while maintaining privacy. The vertical slats lend a classic and timeless touch to this collection, …
Set of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of …
Swing gate 3,4m SANTIS H.160 grey aluminium
Discover the SANTIS swing gate, ideal for preserving your privacy without sacrificing style.
The SANTIS double-leaf gate combines strength and elegance with its upper bar design that lets light through while maintaining privacy. The vertical slats lend a classic and timeless touch to this collection, ideal for adding a touch of modernity to your exterior without compromising security. This semi-openwork aluminum swing gate is the perfect compromise between an openwork and solid gate, meeting your privacy needs while maintaining visibility.
Swing Gate: The ideal solution for a spacious and secure entrance
With its classic two-leaf opening, the swing gate combines elegance and practicality. Ideal for spacious entrances, it offers easy access while adding a touch of style to your exterior. Robust and durable, it resists bad weather, ensuring a long lifespan. Easy to maintain, it is a reliable and attractive solution for securing your property. If you choose a double-leaf gate motor, this will further increase its ease of use, making it easier to open and close your electric swing gate on a daily basis.
This swing gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 335 cm x Height 160 cm
Required width between posts: 340 cm
Minimum post height: 175 cm
- 18 bars (7.8cm wide)
- 20 powder-coated slats (15.5cm wide)
- 2 upper hinges mounted on ball bearings
- 2 lower hinges
- 1 automatic center stop
- 2 reception stops
- 1 barrel lock (black)
- 1 handle
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum stands out for its lightness, strength, and corrosion resistance. This material does not rust and retains its appearance over time, even in the face of adverse weather conditions. Easy to maintain, simple regular cleaning is enough to preserve its original shine. Durable and attractive, aluminum is ideal for your outdoor spaces, offering a modern and high-performance solution. By choosing aluminum, you combine practicality, longevity, and elegance every day.
Need posts?
Our kits are sold without posts, as they are not essential if you already have pillars or supports suitable for installation.
If you need them, discover our promotional packs that include the product of your choice and its matching posts.
The minimum height of the posts for this swing gate is 175 cm.
How to maintain your aluminum product?
Aluminum requires very little maintenance. To maintain its shine and durability, clean it once or twice a year with warm, soapy water and a soft cloth.
Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your swing gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of Qualicoat-certified powder-coated aluminum, they are highly resistant to corrosion and weathering. Their anthracite gray color (RAL 7016), with a matte sandblasted finish, harmonizes with all CASANOOV aluminum gates and pedestrian gates for a modern and refined look.
These posts are designed for installation in concrete (without a base plate), ensuring a robust and durable fixing, even for motorized installations.
They are compatible with all our aluminum gates and pedestrian gates up to 160cm, as well as with all CASANOOV motors, for simple and reliable installation.
- 2 aluminum posts
- 2 aluminum post caps
- Galvanized steel screws included
- Clear assembly instructions
Important: This kit does not include a base or mounting plate. It must be set in the ground with a minimum of 50 cm of concrete to ensure maximum stability.
The finishing cap is easy to install and remove, allowing for the passage of electrical cables for motorization or the addition of accessories (photocells, flashing lights, etc.).
Maintenance: Simply cleaning with soapy water is all that is needed to preserve the shine and color of your post.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Assembly time
8 h
-
Sleeper Section
77*30 mm
-
Frame material
Aluminium
-
Stud/rail assembly
Self-drilling screws
-
Locking system
Barrel lock
-
Compatible motorization type
With articulated arm and jacks
-
Number of lower hinges
2
-
Height
166 cm
-
End stop
2
-
Available in sliding
Yes
-
Central stop
Yes
-
Eligibility Extension of warranty 10 years
No
-
Assembly instructions
Yes
-
Width
3347 cm
-
Thickness of the blades
1.2 mm
-
Sleeper thickness
2 mm
-
Minimum pillar height
175 cm
-
Top cover cap
Yes
-
Warranty
2 an(s)
-
Compatible engines
Yes
-
Eligibility Extended warranty 5 years
No
-
Compatible pillar spacing
336,7 - 342,7 cm
-
Operating clearance
30 mm
-
Width between pillars
3397 cm
-
Opening direction
Towards the house, See Technical diagram
-
Recommended number of persons for assembly
2
-
RAL
7016
-
Blade section
155*15 mm
-
Finishing
Mast
-
Amounts Section
78*47 mm
-
Pattern / Design
SANTIS
-
Stud thickness
1.4 mm
-
Supplied accessories
Yes
-
Pivoting system
Ball bearing
-
Rod assembly
Self-drilling screws
-
Type of lock
5 Keys
-
Handle colour
Black
-
Main material
Aluminium
-
Opening system
Swing gate
-
Colour
Charcoal grey
-
Handle material
Aluminium
-
Type of filling
half openworked
-
Wind resistance
55 km/h
-
Number of upper hinges
2
-
RAL
7016
-
Section
15*15 cm
-
Main material
Aluminum
-
Finishing
Powder coating
-
Hat size
15*15 cm
-
Type of installation
To be sealed
-
Width
15 cm
-
Warranty
2 an(s)
-
Screws included
Yes
-
Height
240 cm
-
Colour
Charcoal grey
-
Mounting plate included
No
-
Notice
Yes
-
Thickness
3 mm
-
Installation type
To be sealed
