Pack OLGA 300B200 mesh swing gate + 1m GRAY gate

Name: Pack OLGA 300B200 mesh swing gate + 1m GRAY gate
Brand: casanoov
Price: 959.0 EUR
Availability: OutOfStock

SKU : PAC-001407

5829 kr

This pack contains:
3m OLGA gray mesh swing gate
Mesh gate 1m OLGA gray
Round posts - Height 200 cm

Victim of his success!

Alert me

Notify me when this product is back in stock.

Casanoov celebrates its 5th anniversary!

1 aluminum gate purchased = 1 motorization free + draw with 5 winners!

Technical data

Mesh gate 3m OLGA H.200cm grey

End stop

Assembly time

2 h

Pattern / Design

Column section

Section of the mesh

50*50*4 mm

frame section

⌀40 mm

Post diameter

⌀60 mm

Height

206 cm

Assembly instructions

Yes

Mesh gate 3m OLGA H.200cm grey

End stop

Assembly time

2 h

Pattern / Design

Column section

Section of the mesh

50*50*4 mm

frame section

⌀40 mm

Post diameter

⌀60 mm

Height

206 cm

Assembly instructions

Yes

Operating clearance

-10 / +60 mm

Usable post height

206 cm

Width

306 cm

Sleeper Section

Ø40 mm

Amounts Section

Ø40 mm

Pivoting system

Hinge

Mesh size

50x50 mm

Type of keys

standard key

Sleeper thickness

1,3 mm

Handle material

Aluminium

Finishing

Powder coating

Opening direction

Choice of inside or outside

Locking system

Cylinder lock

Compatible pillar spacing

305 - 312 cm

Handle colour

Black

Minimum pillar height

206 cm

Post thickness

1,8 mm

Number of lower hinges

Width between pillars

294 cm

Posts included

Yes

Material of the lock

Galvanized steel

Compatible engines

Stud thickness

1,3 mm

Number of upper hinges

Central stop

Yes

Available in sliding

Supplied accessories

Yes

Recommended number of persons for assembly

Barrel material

Copper

Colour

Gray

Rod assembly

Welding

RAL

7016

Top cover cap

Yes

Type of lock

Keys (3)

Wire diameter

4 mm

Stud/rail assembly

Self-drilling screws

Opening system

Swing gate

Wire wrap

Powder coating

Main material

Galvanized steel

Hinge material

Stainless steel

pole type

Sealing

Type of filling

Wire mesh

Total post height

270 cm

Wire mesh side gate 1m OLGA H.200cm grey

Type of lock

Keys (3)

Rod assembly

Welding

Assembly time

1/2 h

Sleeper Section

Ø40 mm

Pattern / Design

Section of the mesh

50*50*4 mm

Column section

60x1,5 mm

Stud thickness

1,3 mm

Number of end stops

Type of keys

standard key

Pivoting system

Hinge

RAL

7016

Locking system

Cylinder lock

Opening direction

Choice of inside or outside

frame section

⌀40 mm

Post diameter

⌀60 mm

Stud/rail assembly

Self-drilling screws

Mesh size

50x50 mm

Amounts Section

Ø40 mm

Finishing

Powder coating

Total post height

250 cm

Width between pillars

94 cm

Height

206 cm

Operating clearance

-5 / +30 mm

Compatible pillar spacing

105,5 - 109 cm

pole type

Sealing

Wire diameter

4 mm

Material of the lock

Galvanized steel

Handle material

Aluminium

Compatible engines

Sleeper thickness

1,3 mm

Type of filling

Wire mesh

Top cover cap

Yes

Supplied accessories

Yes

Usable post height

206 cm

Number of upper hinges

Post thickness

1,5 mm

Wire wrap

Powder coating

Hinge material

Stainless steel

Assembly instructions

Yes

Adjustable installation accessories

Yes

Minimum pillar height

206 cm

Frame material

Galvanized steel

Colour

Gray

Recommended number of persons for assembly

Number of lower hinges

Posts included

Yes

Width

106 cm

Main material

Galvanized steel

Barrel material

Copper

Description

This pack contains:
3m OLGA gray mesh swing gate
Mesh gate 1m OLGA gray
Round posts - Height 200 cm

Mesh gate 3m OLGA H.200cm grey

The OLGA wire mesh swing gate is ideal for enclosing and securing your garden or separating various green spaces or properties. Its classic yet …

Mesh gate 3m OLGA H.200cm grey

The OLGA wire mesh swing gate is ideal for enclosing and securing your garden or separating various green spaces or properties. Its classic yet timeless design will allow you to easily match it with any type of fence, whether flexible or rigid.

Recognized for its lightness, this swing gate is nonetheless robust and durable.
Its mesh structure designed in powder-coated galvanized steel gives it unfailing resistance against bad weather and protection against corrosion. The 50x50mm mesh welded at the frame level was designed in rigid mesh with 4mm diameter thick wire thus benefiting from a reinforcement of its solidity.

Cheap but above all solid and very effective, our wire mesh fence gate is undoubtedly the best solution available to you, whether for private or professional use.

Description: Wire Mesh swing gate
Material: Galvanized Steel
Colour: Anthracite Grey - RAL 7016
Dimensions: Width 306cm x Height 250cm
Gate dimensions: Width 285cm x Height 200cm
Mesh section: 50x50mm - Ø 4mm wire
Post dimensions: Diameter 60mm x 1.8mm
Post height: 250 cm
Post anchoring depth: between 41 cm and 44 cm

This swing gate kit, to be assembled and installed by yourself, contains:
- 8 frames with Ø40mm welded wire mesh
- 2 round posts Ø60mm (Height 250cm)
- 4 adjustable hinges
- 1 reception striker
- 1 bayonet latch for swing gate
- 1 cylinder lock
- 1 handle (Black color)
- 3 keys
- Finishing caps
- Screws

In order to allow the sealing of our wire mesh swing gates, the posts have been designed to be longer.
If you do not wish to seal them, it is entirely possible to place them on post plates for swing gates.
In this case, we advise you to saw off the posts for aesthetic reasons.

The OLGA model is also available in Green (RAL 6005) and in other dimensions: Width 4m and Heights 100cm, 130cm, 150cm and 180cm.
Also available as a side gate.

Wire mesh Swing gate delivered as a kit.
Clear instructions, simple and quick assembly.
Find all the necessary information about this product in the technical characteristics.

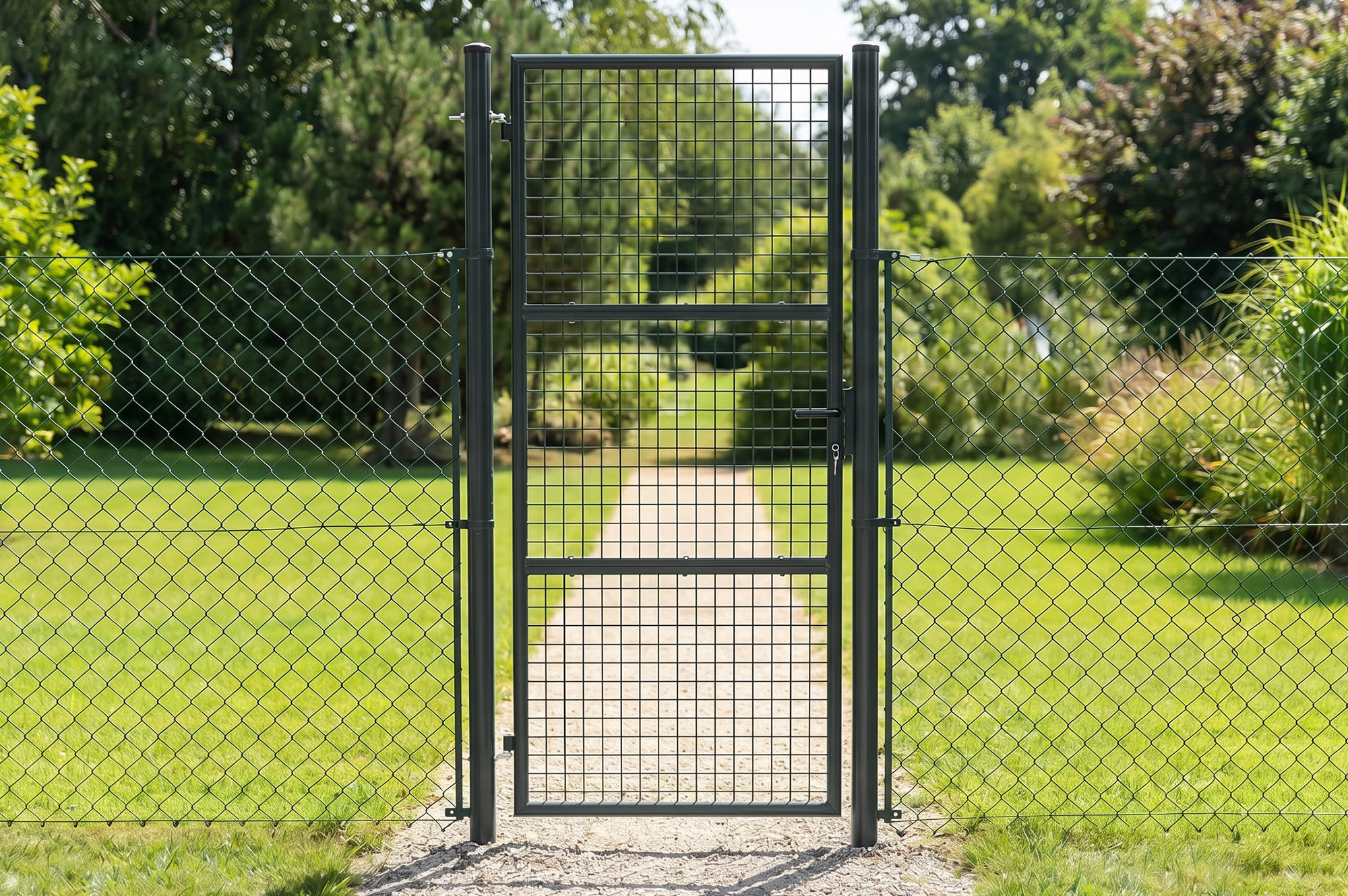

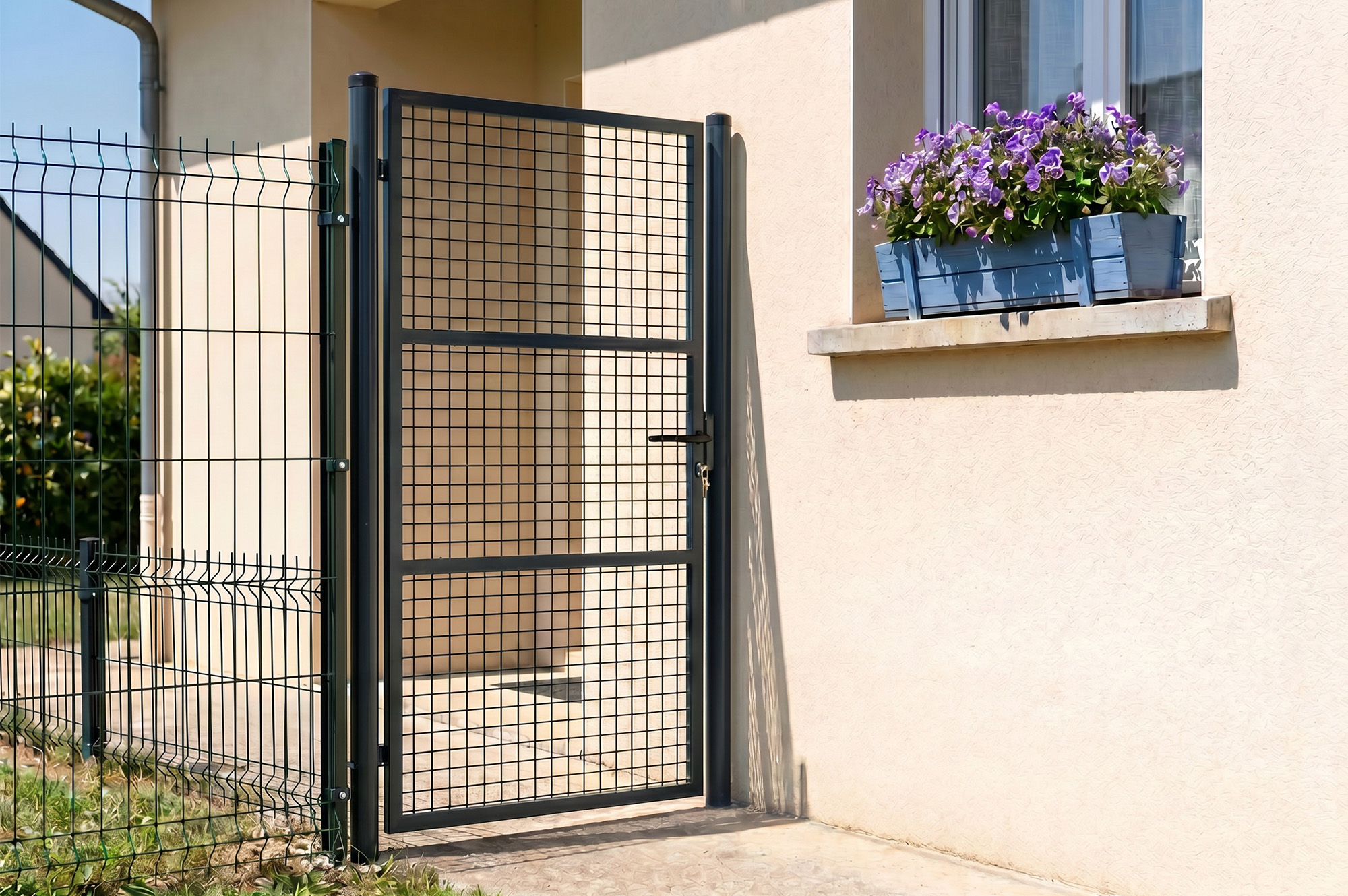

Wire mesh side gate 1m OLGA H.200cm grey

The simple and effective design of our OLGA wire mesh gate is ideal for fencing off and securing your garden or separating different green areas or properties.
Its classic style allows you to easily match it with any type of fence, be it flexible or rigid.

Known for its lightness, this wire mesh single gate is robust and durable.
Its galvanised steel fence structure makes it extremely resistant to the most extreme weather conditions.
The powder coating on the surface provides additional protection against rust and corrosion.

Affordable, but above all durable and very strong, wire mesh gates are undoubtedly the best value for money pedestrian gates available, whether for domestic or commercial use.
Generally used by private individuals to allow access to a property or garden, this type of gate is also very popular with professionals for industrial use or for collective buildings (schools, parks, green areas, estates, etc.).

Description : Round post wire mesh side gate
Material: Galvanised steel
Colour: Anthracite Grey - RAL 7016
Dimensions: Width 106cm x Height 206cm
Mesh section: 50x50mm - Ø 4mm wire
Post dimensions: Ø60mm x 1.5mm
Total height of posts: 250cm
Post height after sealing: between 204cm and 206cm
Post embedment depth: between 44cm and 46cm

This DIY gate kit contains
- 3 welded wire mesh frames
- 2 round posts Ø60mm (height 250cm)
- 2 stainless steel adjustable hinges
- 1 strike plate
- 1 cylinder lock
- 1 handle (black)
- 3 keys
- End caps
- Screws

In order to seal our wire mesh gates, the posts have been designed to be longer.
For a secure and solid installation we recommend that you seal your posts between 44 and 46cm deep.
If you do not wish to seal the posts, it is possible to mount them on post skirts.
In this case, we advise you to saw off the posts for aesthetic reasons.

The OLGA fence side gate has been designed with a reversible opening direction. You can therefore choose the opening direction of your garden gate when you fit your receiving plate (see assembly instructions).

The OLGA wire mesh gate is also available in green (RAL 6005) and in heights of 100cm, 130cm, 150cm and 180cm.
It is also available as a swing gate.

The gate is delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
